SuperTrak VERTICAL10™ Specs, Components & Configurations
The independent shuttle control of SuperTrak VERTICAL10™, combined with up to 40m/s² acceleration and +/-0.01mm repeatability, allows machine builders to reduce repetitive tooling and decrease the system’s overall footprint.
Specifications Data Sheet
| Details |  |
|---|---|
| Straight Section | 1000mm |
| 180° Section | 500mm Width |
| 90° Section | N/A |
| Product Fixture Width | 152 up to 1000mm |
| Repeatability | +/- 0.01mm (straight section); No process on curve |
| Maximum Speed | 4 m/s |
| Acceleration | 1G with 10 kg payload; 4G with 1 kg payload |
| Payload | 10+ kg per shuttle (max 4kg per shuttle on vertical curves) (Higher payloads possible. Speak to a member of the SuperTrak Team for more info.) |
| Shuttle Options | Standard shuttle configuration with 2 or 3 magnet array options |
| Process on Curve | Not possible |
| Communication |     |
SuperTrak VERTICAL10™ Components
Designed to serve compact, accurate, and flexible assembly automation, SuperTrak VERTICAL10™ is an asynchronous conveyor available in various system lengths, with 500mm wide curves and wall mounts to ease integration.

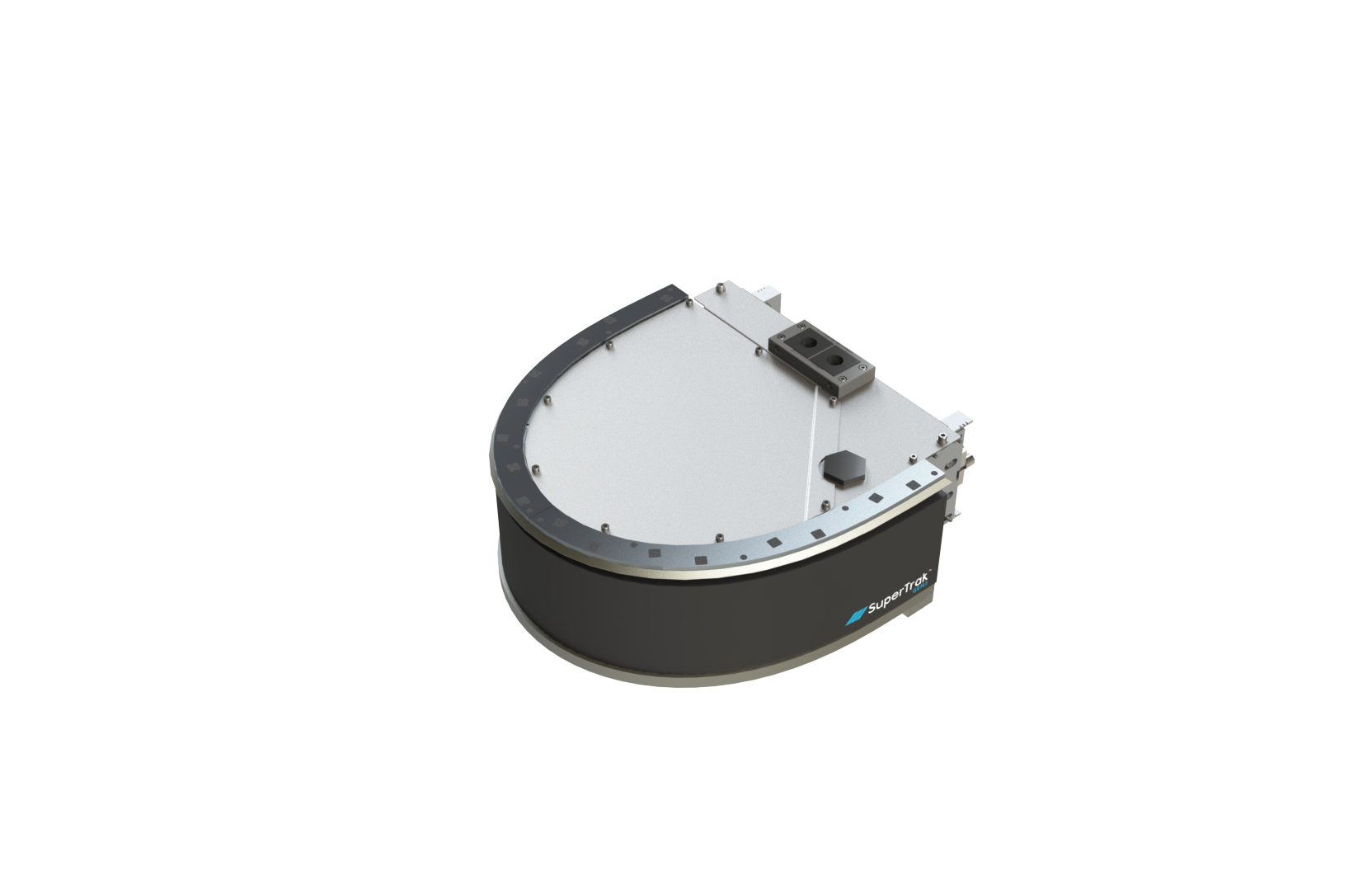

Low Profile 180° Section (500mm Diameter)

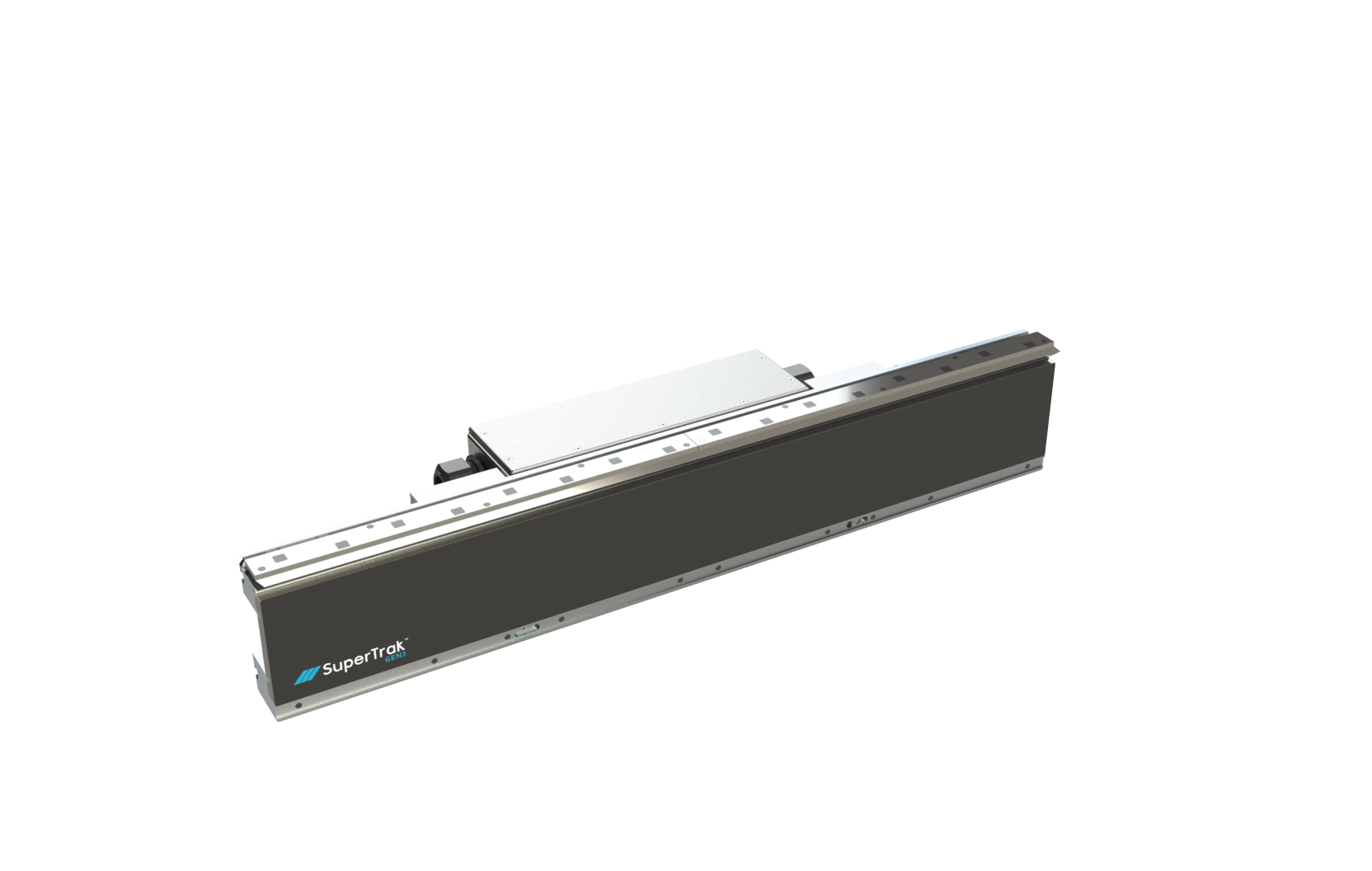

Low Profile Straight Section
SuperTrak VERTICAL10™ Configuration
Vertical
This configuration is best suited for manufacturing processes with a unidirectional part flow application. On curves, it has a slightly lower weight capacity of 4kg per shuttle but maintains the 10kg capacity on straights. Utilized in applications where floor space is at a premium, the vertical configuration has succeeded in automotive battery assembly and packaging applications.

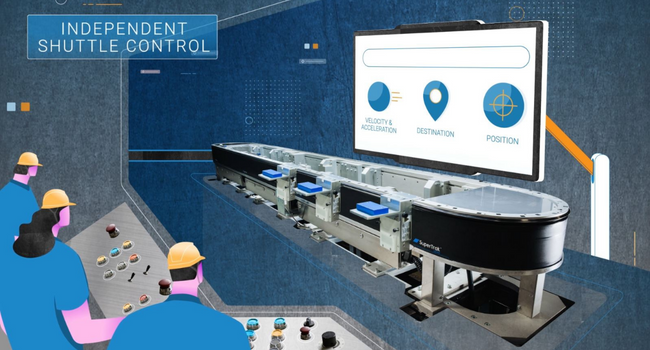

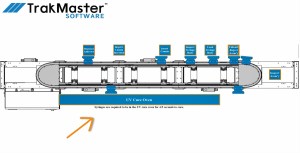

Speed – Precision – Independent shuttle control
Increased speeds, lowered settling times, and rapid acceleration improve cycle times and overall productivity.
Increased precision means that stop-and-locate tooling is not required; this results in decreased cycle times with fewer parts and less engineering.
