TrakMaster™ Software Enables Smart Conveyance

TrakMaster™ software is the user interface for the SuperTrak CONVEYANCE™ platform, providing a means to:

  • Create System Simulations
  • Configure Integrated Functionality
  • View System Performance Statistics
  • Access Diagnostic Tools

Unlike other conveyance platforms, TrakMaster™ was designed and built with the intent to reduce engineering and integration hours, offering machine builders and manufacturers a faster path to production. The easy to use software empowers an intuitive PLC interface to control the SuperTrak™ platform’s high-performance capability with less engineering and therefore less risk.

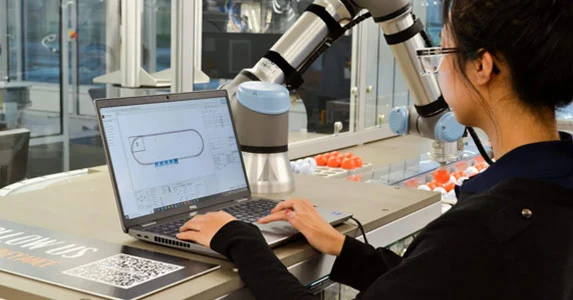

Simulation

TrakMaster™ software enables better designs.

Simulation is the connection between conceptualization and design. TrakMaster™ simulation provides a way to optimize processes, evaluate performance requirements, and understand energy consumption.

The simulation software in TrakMaster™ features:

  • Intuitive graphical interface
  • Performance optimization tools
  • Power and thermal modeling

Configuration

TrakMaster™ software enables high performance.

Access and configure the SuperTrak CONVEYANCE™ platform’s integrated functionality to remove risk and engineering time by utilizing tested and proven capability.

Configure in TrakMaster™ :

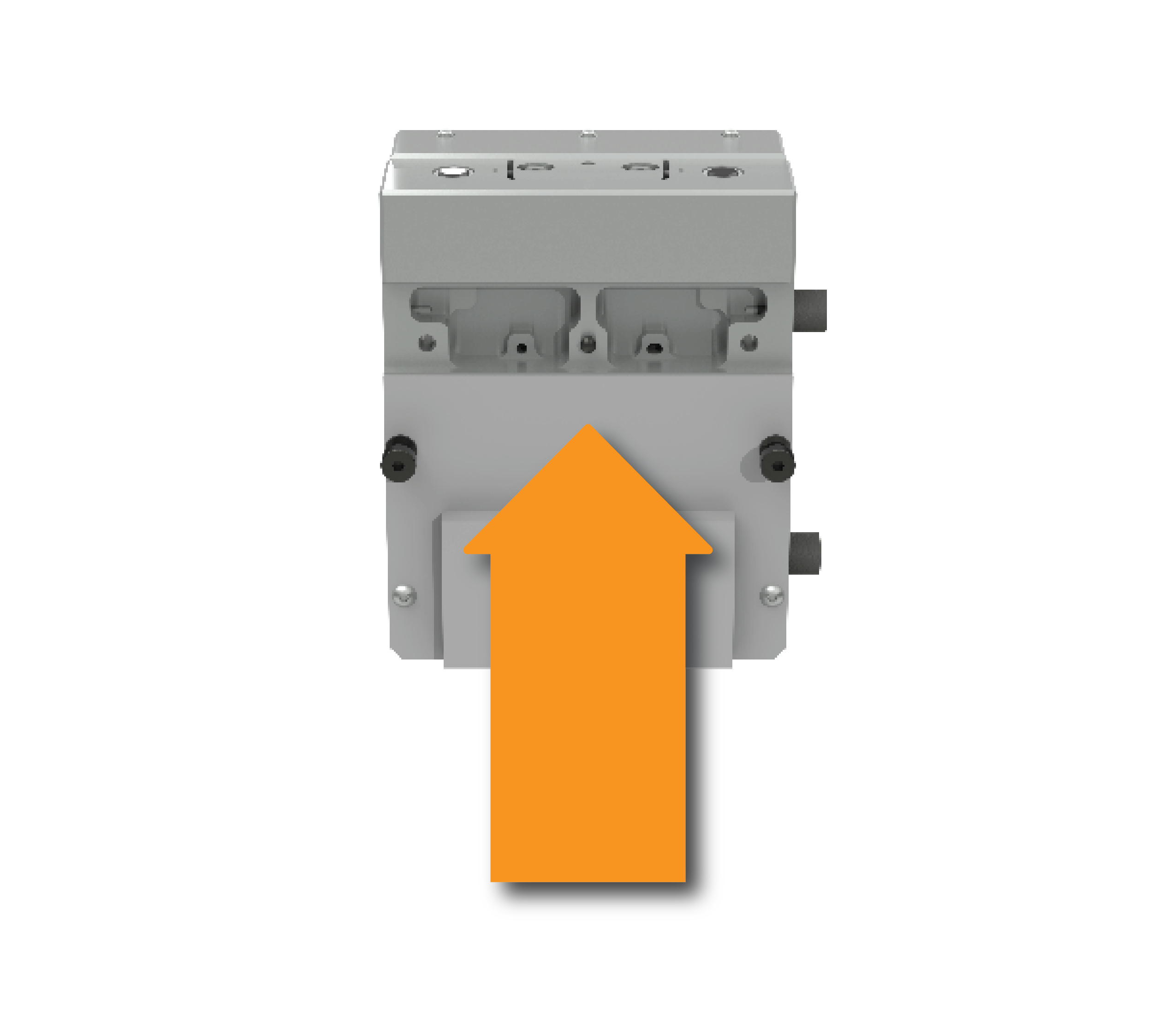

Targets

Position Triggers

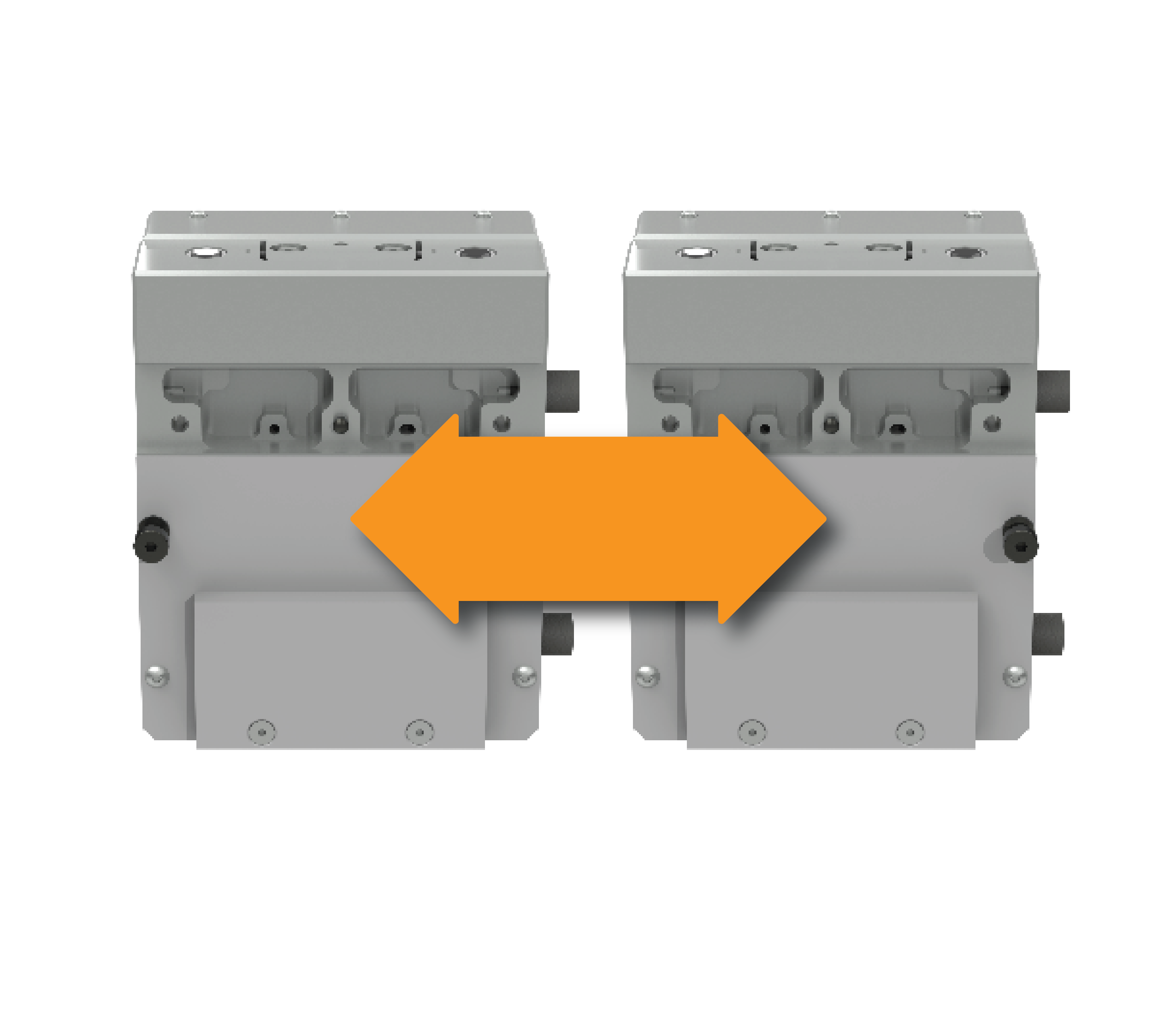

Pre-Arrival Notifications

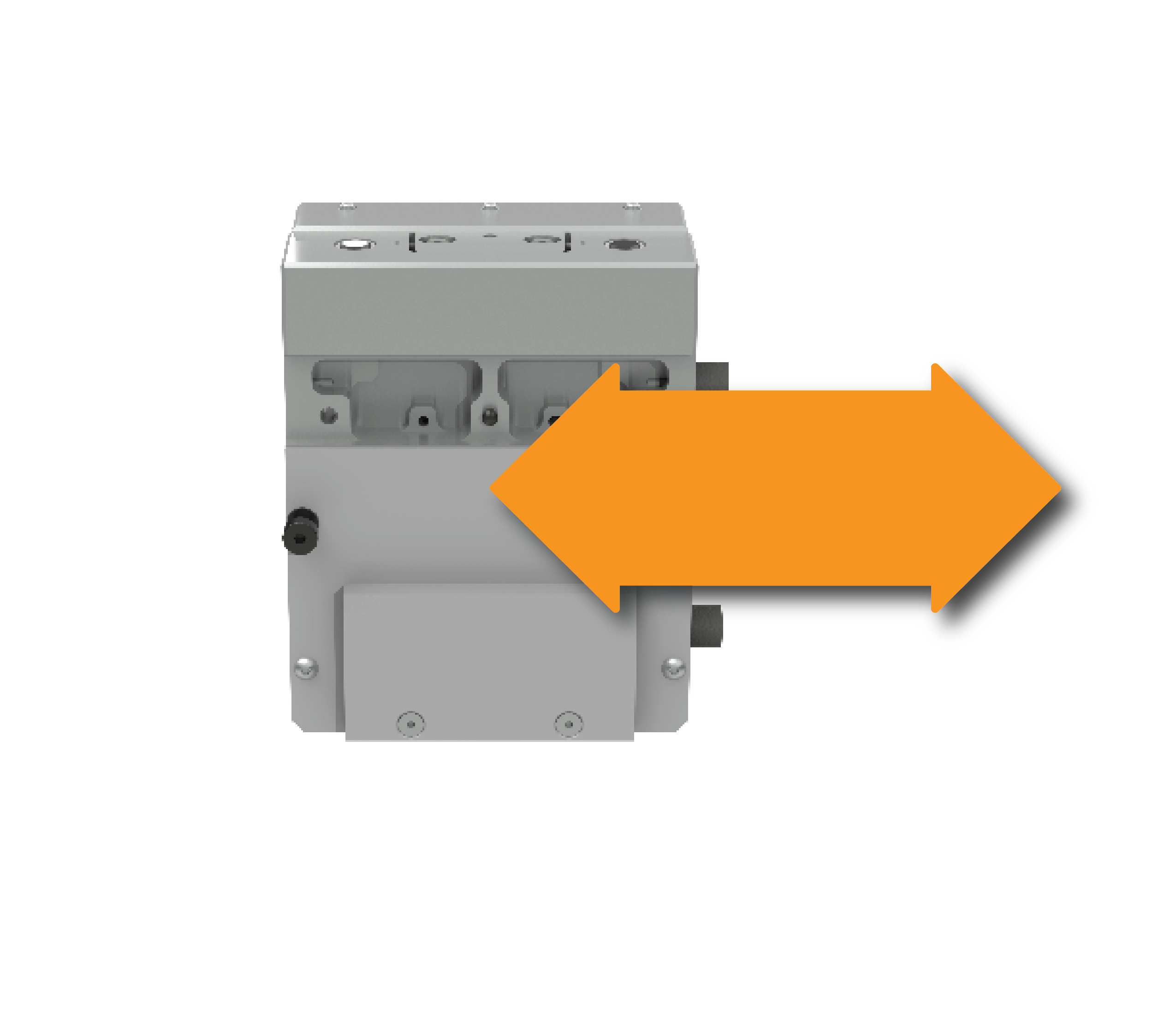

Pre-Stops

Interface I/O

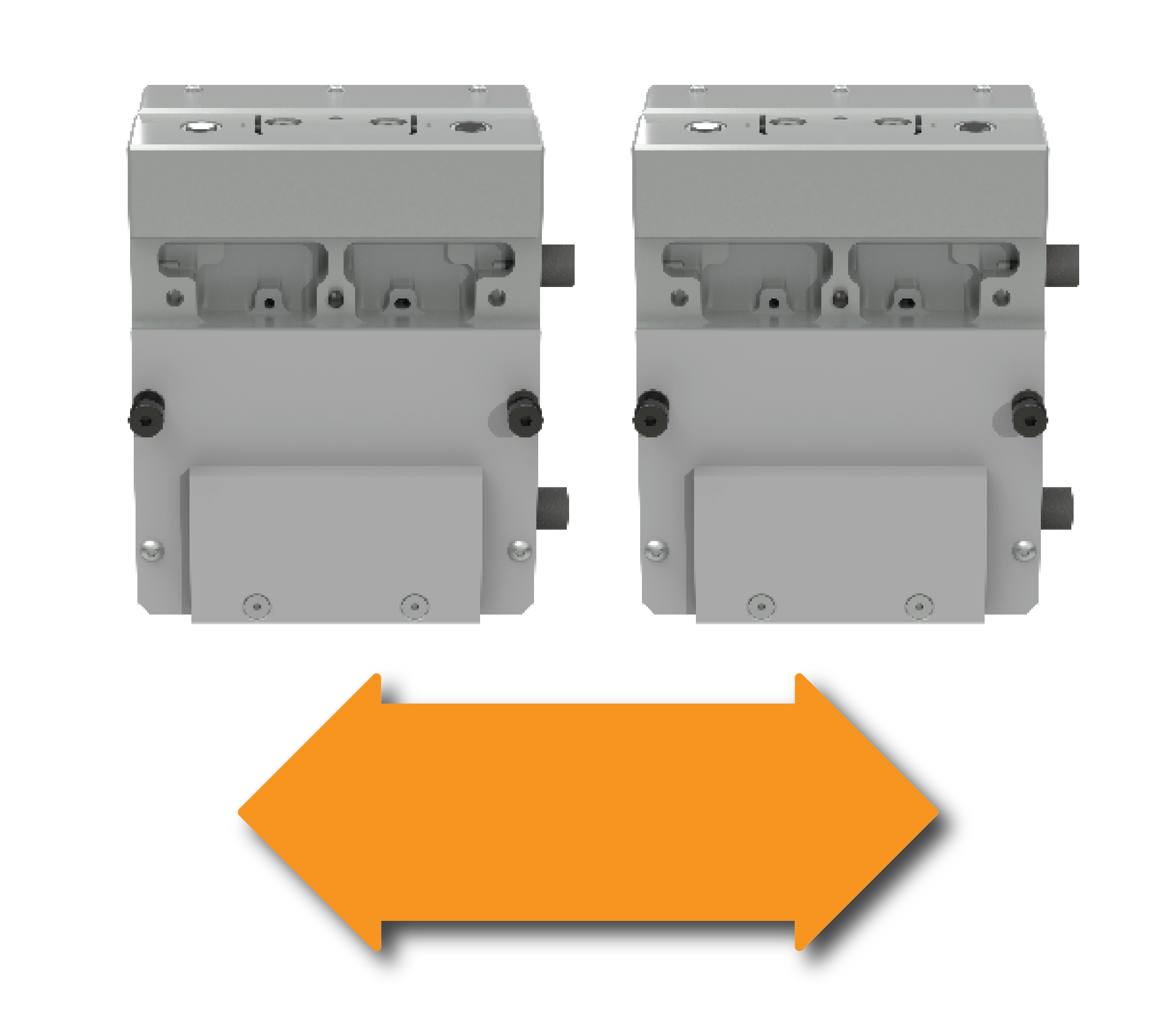

Offsets

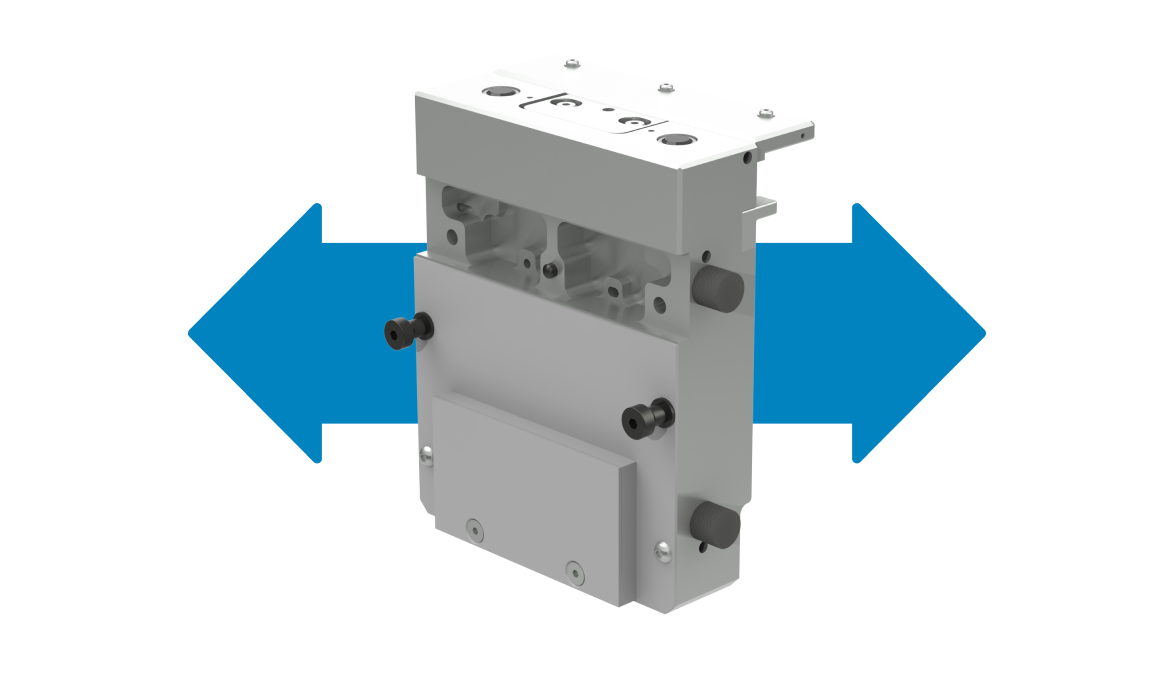

Set Motion Parameters

Collision Avoidance

Diagnostics

TrakMaster™ software enables better machine interaction.

Diagnostic Tools provide valuable insight for fault handling and recovery, system status, and highlights station metrics (cycle time, shuttle transfer, etc.) for optimization and improved OEE.

TrakMaster™ diagnostics include:

  • Fault description and troubleshooting guide
  • Power and thermal monitoring
  • Oscilloscope for signal tracking

Control Interface

TrakMaster™ software enables high performance with simple control.

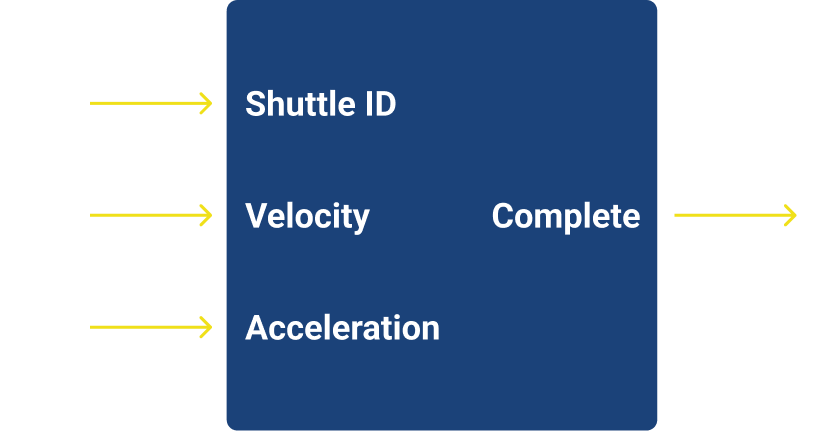

PLC function blocks provide an intuitive interface to control shuttle motion, access data, and set parameters. This removes significant time from programming and integration and allows you to get up and running quickly.

TrakMaster™ software provides access to SuperTrak CONVEYANCE’S™ control interface:

  • Intuitive function blocks
  • Release and forget shuttle routing
  • Set motion parameters
  • Fault handling

Request a free simulation of your application.

You know what you need to do. Let us help you bring your ideas to life with our conceptualization and simulation services. Better understand your system requirements and identify bottlenecks to optimize your process before a piece of equipment touches your factory floor.

Resources

TrakMaster™ Software – Diagnostics Capabilities

TrakMaster's™ diagnostic tools provide you with valuable insight for fault handling and recovery, system status, and highlights station metrics for optimization and improved OEE for your automation system.

Watch Video

TrakMaster™ Software – Simulation Capabilities

TrakMaster™ Software can turn your outline into a realistic simulation with a high level of insights.

Watch Video

TrakMaster™ Software – Configuration Capabilities

Access and configure the SuperTrak CONVEYANCE™ platform's integrated functionality using TrakMaster's™ configuration tools. Remove risk and engineering time by utilizing tested and proven capabilities to enable high-performance automation.

Watch Video
