The independent shuttle control of SuperTrak HORIZON10™, combined with up to 40m/s² acceleration and +/-0.01mm repeatability, allows machine builders to reduce repetitive tooling and decrease the system’s overall footprint.
Specifications Data Sheet
Straight Section
1000mm
180° Section
500mm Width
800mm Width
90° Section
1200mm Width (2x 600mm sections)
Product Fixture Width
152 up to 1000mm
Repeatability
+/- 0.01mm (straight section)
+/- 0.025mm (curved section)
Maximum Speed
4 m/s
Acceleration
1G with 10 kg payload
4G with 1 kg payload
Payload
10+ kg per shuttle*
_
Process on Curve
Full control
Shuttle Options
Standard shuttle configuration with 2 or 3 magnet array options
Straight Section
1000mm
180° Section
500mm Width
_
90° Section
N/A
Product Fixture Width
152 up to 1000mm
Repeatability
+/- 0.01mm (straight section)
Not stopping (curved section)
Maximum Speed
4 m/s
Acceleration
1G with 10 kg payload
4G with 1 kg payload
Payload
10+ kg per shuttle*
(max 4kg per shuttle on vertical curves)
Process on Curve
Not possible
Shuttle Options
Standard shuttle configuration with 2 or 3 magnet array options
*Higher payloads possible. Speak to a member of the SuperTrak Team for more info.
Communication
SuperTrak HORIZON10™ Components
Designed to serve fast, accurate, and scalable assembly applications, SuperTrak HORIZON10™ is available in various system widths and lengths.
- 500mm wide loops reduce the footprint of the track to the maximum.
- 800mm wide loops provide space inside the track to place process stations while leaving better access to the product for operators, feeders, etc…
- 90° curved sections allow for extending the space available inside the track.
90° Section 1200mm Width (2x 600mm sections)
180° Section (500mm Diameter)

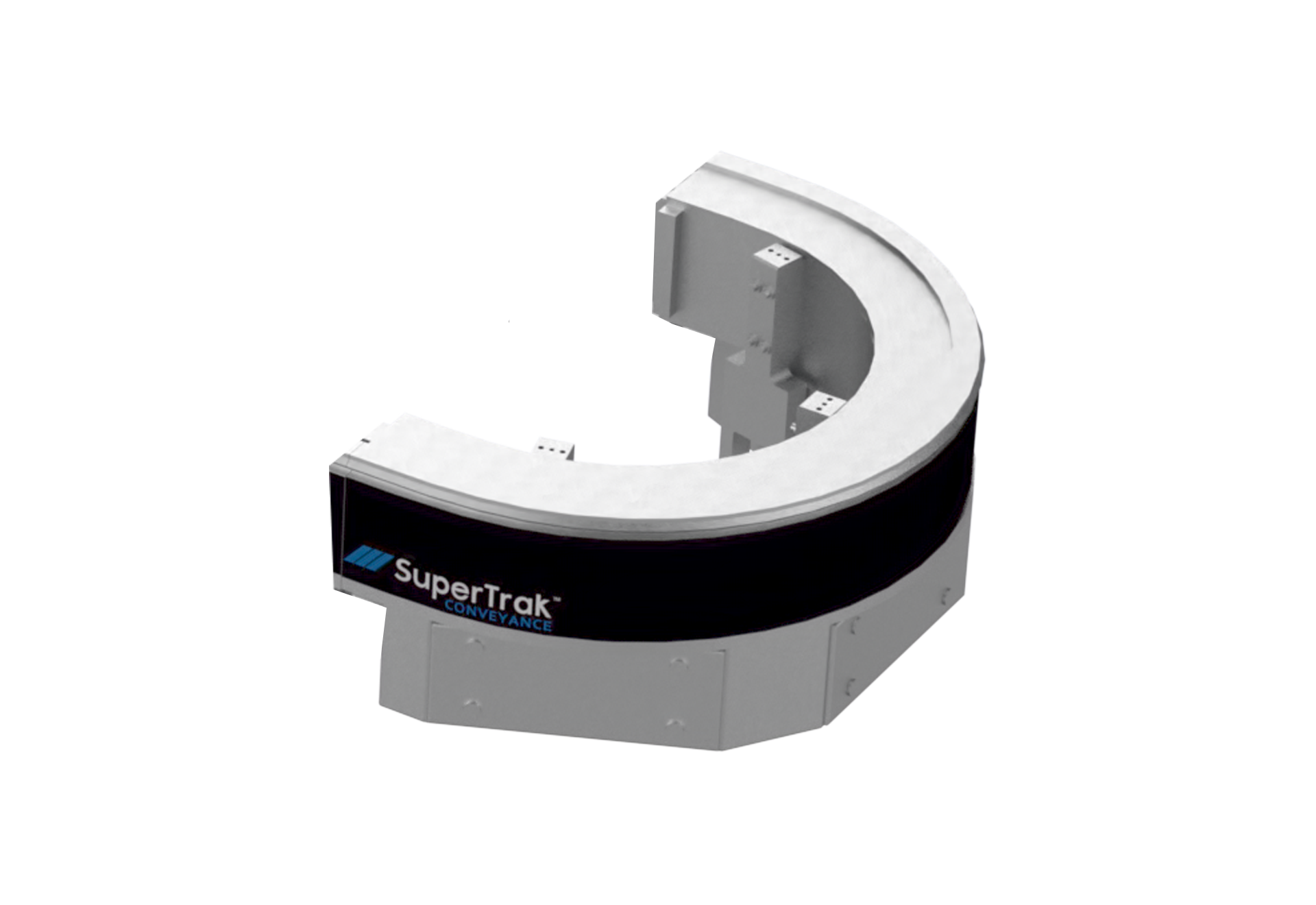

180° Section (800mm Diameter)

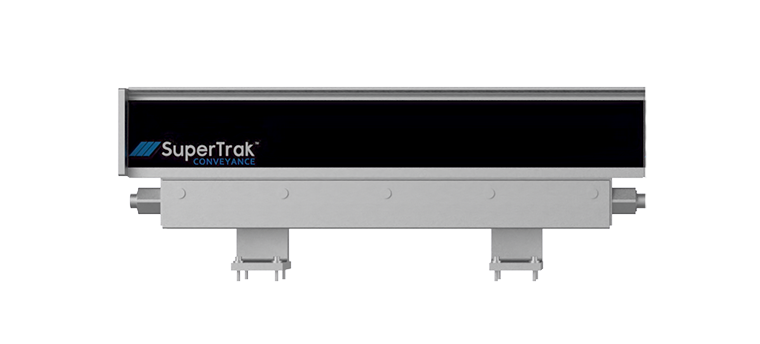

1000mm Straight Section
SuperTrak HORIZON10™ Configurations
500mm Configuration
The 500mm diameter 180-degree curve minimizes the space inside the machine, offering manufacturers options to mount tooling on the outside of the conveyance platform.
800mm Configuration
The 800mm diameter 180-degree curve offers additional space on the inside of the conveyance platform, allowing manufacturers several options to mount tooling on the inside of the machine. This helps minimize the amount of space your factory automation requires on the factory floor.
90° Configuration
The new 90° configuration offers the same floor saving space as a servo or indexing dial. The 90° curved sections allow for even more configuration options such as a squared circle or rectangle. When using this configuration, the system can grow in both length and width. Two 90° sections back to back allow for a system that is 1200mm wide. Manufacturers can fit even more tooling on the inside to minimize system footprint.
Speed – Precision – Independent shuttle control
Increased speeds, lowered settling times, and rapid acceleration improve cycle times and overall productivity.
Increased precision means that stop-and-locate tooling is not required; this results in decreased cycle times with fewer parts and less engineering.
Read More
Increase Productivity
Spend More Time in Process – Less Time in Motion and improve Manufacturing Efficiency and OEE.
Simplify design & integration.
Use the SuperTrak CONVEYANCE™ integrated functionality to reduce complexity and risks.
