SuperTrak PHARMA8™
Specifications & Configurations
High-Performance Automation for Aseptic Environments

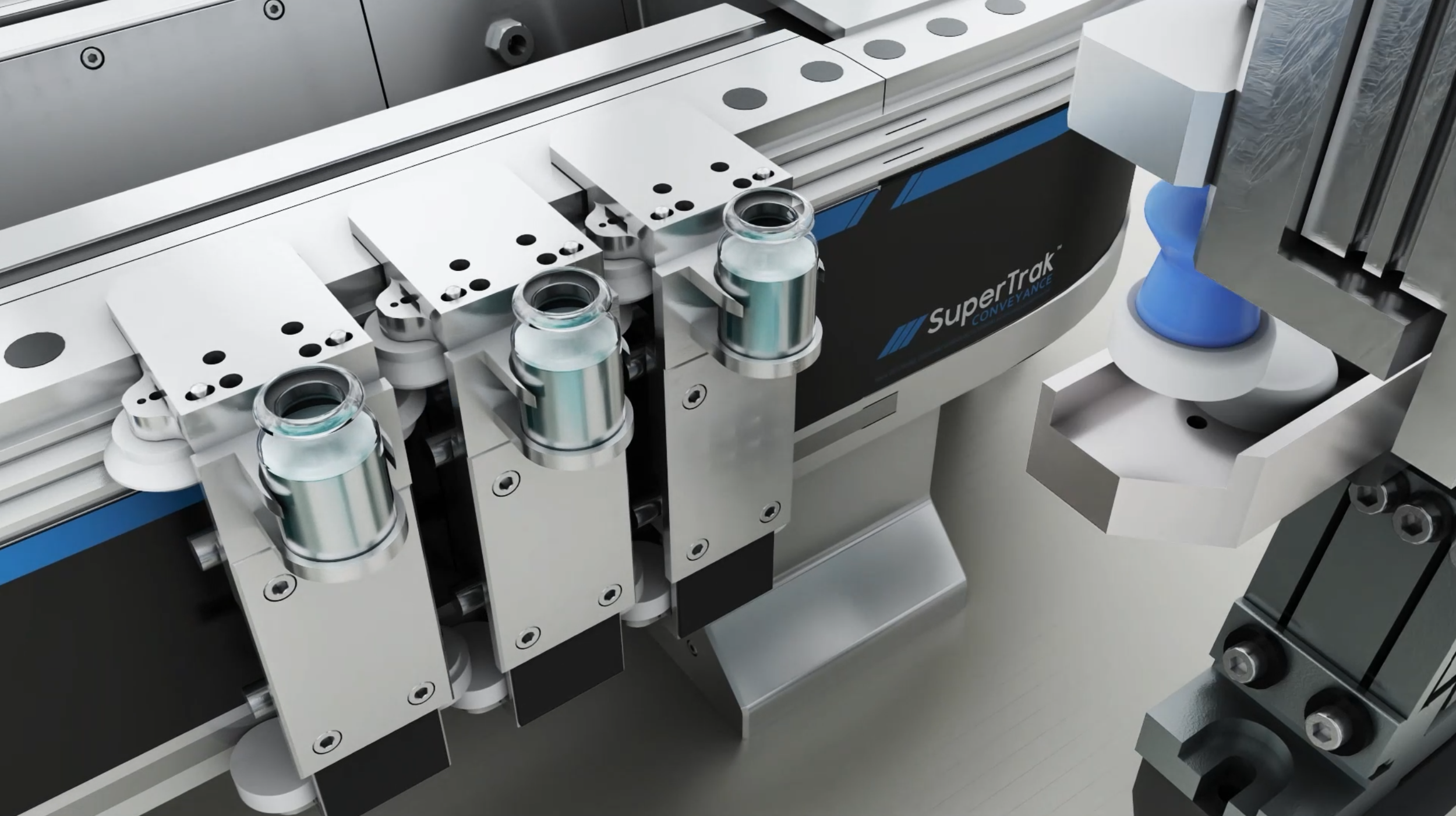

SuperTrak PHARMA8™ is a linear motion solution designed for aseptic processes such as the manufacturing or packing of sterile products.
To protect the product from contamination, the Supertrak PHARMA8™ conveyance platform provides minimal disruption of downward air flow and minimal disturbance of unidirectional laminar airflow within an isolator.
Speed – up to 2.5 m/s
Increased speeds, lowered settling times, and rapid acceleration improve cycle times and overall productivity. Products get in and out of stations as quickly as possible spending more time in process and less time in motion.
Precision – +/- 0.01 mm repeatability
Increased precision means that stopper cylinders, locate tooling, and other add-ons may not be required; this results in decreased cycle times with fewer parts and less engineering. Ultimately your automation is more productive and requires less space on the factory floor.
Independent Shuttle Control
Independently specify each shuttle’s velocity and acceleration, position, and destination, allowing for easier control of asynchronous motion.
SuperTrak PHARMA8™ Specs
Maximum Speed
2.5 m/s
Acceleration
Up to 30m/s²
Stop Repeatability
± 0.01 mm straight section
± 0.025 mm turn section
Shuttle Payload
8.5 kg maximum
Process on Curve
Full control
Shuttle Options
Standard shuttle configuration with 2 or 3-magnet array
Lubricants
No wet lubricant required
Loop Size
1m and 2m plus turns in single piece
3m plus turns and more in module build up
Surface and Roughness
Stainless Steel 316L, Ra < 0.8μm on visible area surfaces
Design Ratings
Design conforms to EEC-cGMP, ISO 9001 & ISO 13485
Particulate Levels Rating
Suitable for ISO 5, ISO 14644.1 & EU GMP Annex 1 Grade A
Washing and
Decontamination
Vaporized hydrogen peroxide (VHP), quats, ethanol, IPA and
traditional sporicidals.
Wash In Place (WIP) with spray gun and spray ball
Communication
Contact us now
Have questions or need assistance?
Whether you’re looking for information on our services, want to schedule a personalized review of your application with a dedicated member of our applications team, or need help with anything else – we’re here for you!
Contact us now and let us know how we can assist you. Your inquiries are important to us, and we’re committed to providing the support you need.
How can we help you today?
Resources

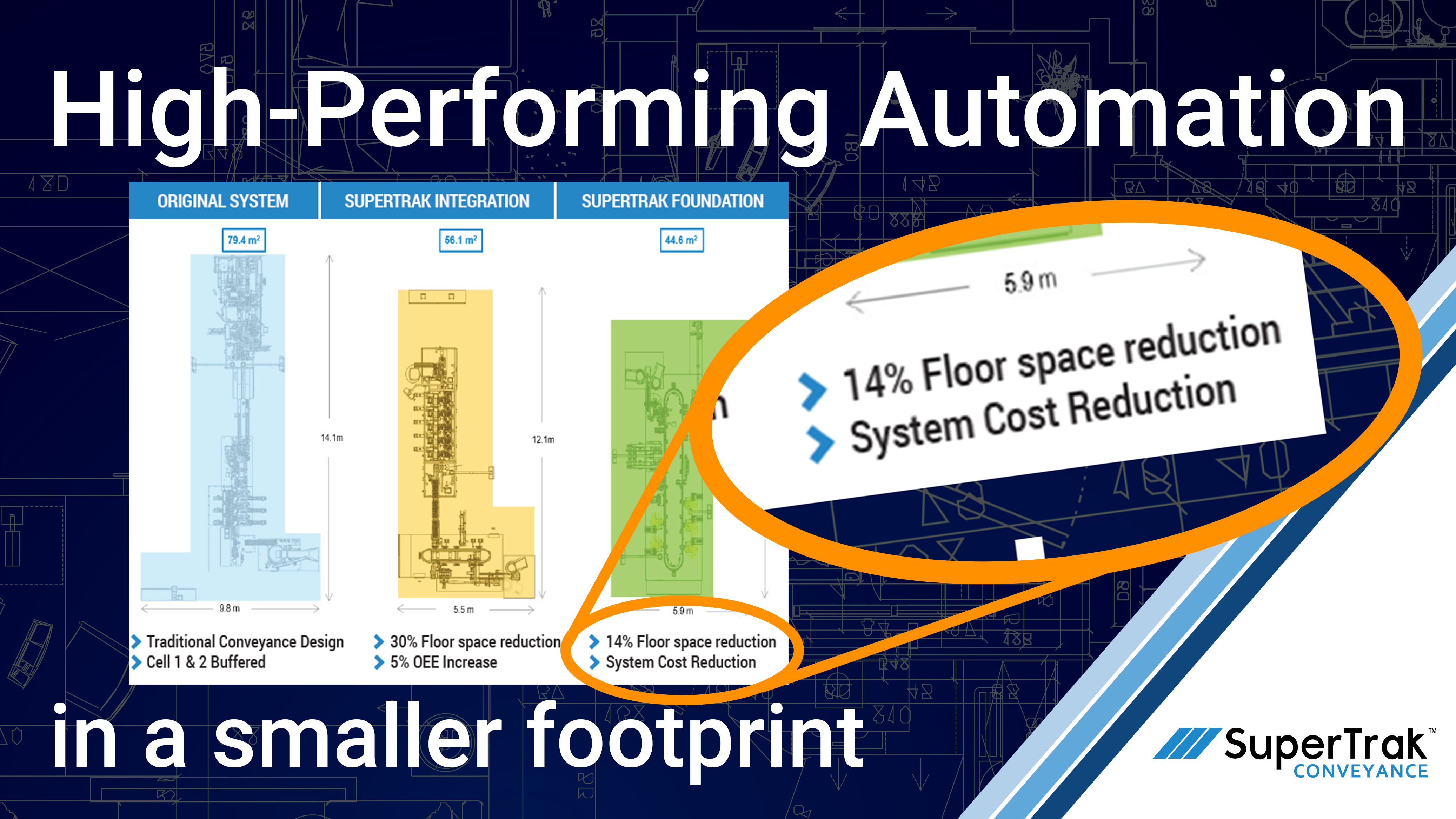

Case Study: Reduce Your Floor Space
Learn how one company reduced floor space and overall system cost by switching from traditional conveyance to Smart Conveyance.
Engineers Guide to Smart Conveyance
Automation can be complex. Smart Conveyance doesn’t have to be. Download the Engineers Guide to see how Smart Conveyance can bring significant benefits to automation design and performance.

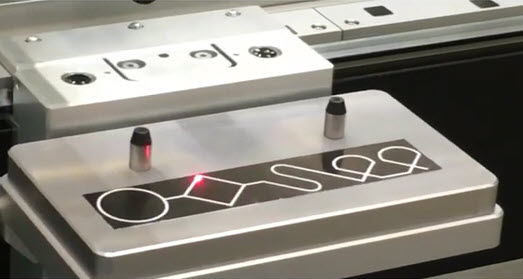

Video: How to Simplify complex assembly processes using Smart Conveyance
