ActiveMover Spare Parts List
To order a spare part, note the part number and name and contact us using the button below:
Here are all the available spare parts. Contact us for a spare parts list specific to your SuperTrak CONVEYANCE™ system at spares@supertrakconveyance.com.
Wiring and Cables
| Supertrak CONVEYANCE™ Part Number | ActiveMover Part Number | Where Used | Description | Image |
|---|---|---|---|---|
| SP-1061547 | 3842555957 | Straight Section FME* | Encoder cable – 548mm |  |

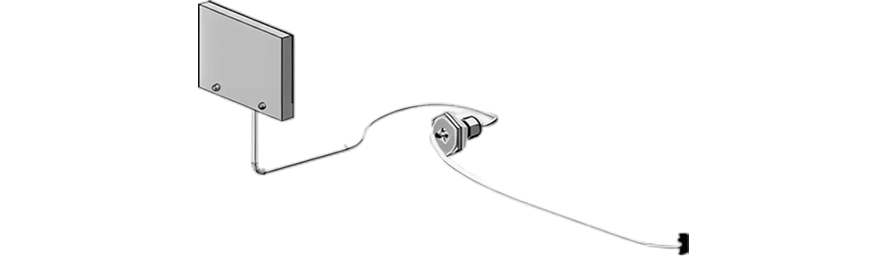

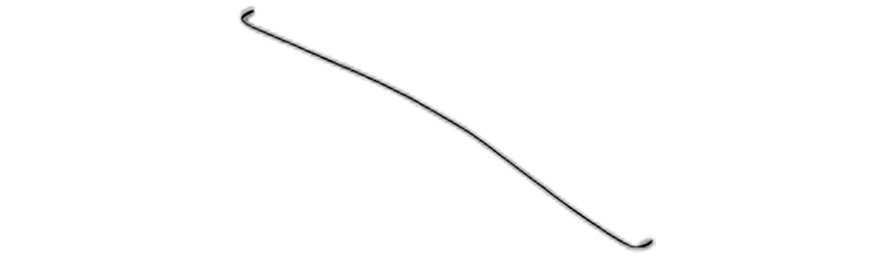

| SP-1061479 | 3842555971 | Straight Section FME* | Thermistor – 300mm |  |
| SP-3708400 | 3842555952 | All Sections | Ethernet network cable |  |

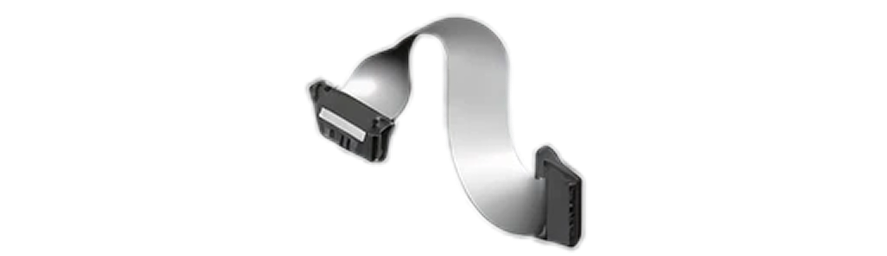

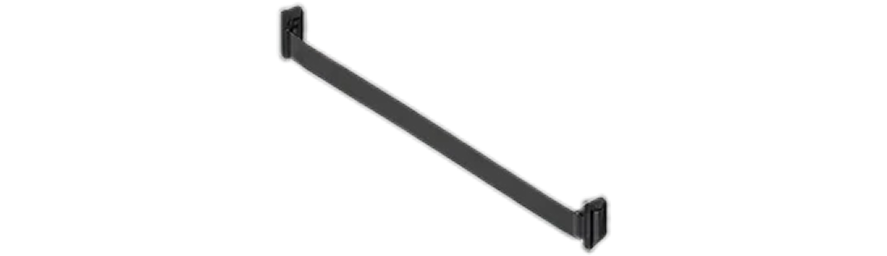

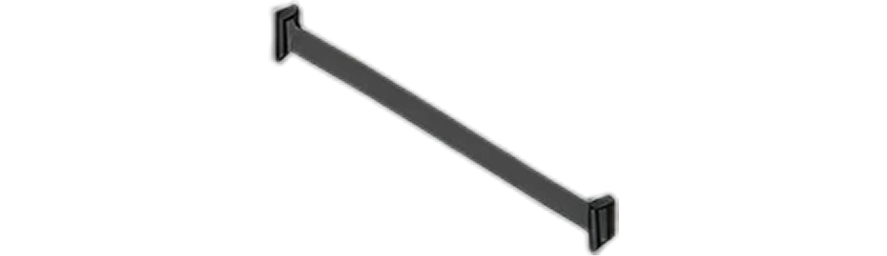

| SP-1060325 | 3842555956 | Straight Section FME* | Ribbon cable – 298mm |  |
| SP-1060322 | 3842555953 | Straight Section FME* | Ribbon cable – 57mm |  |

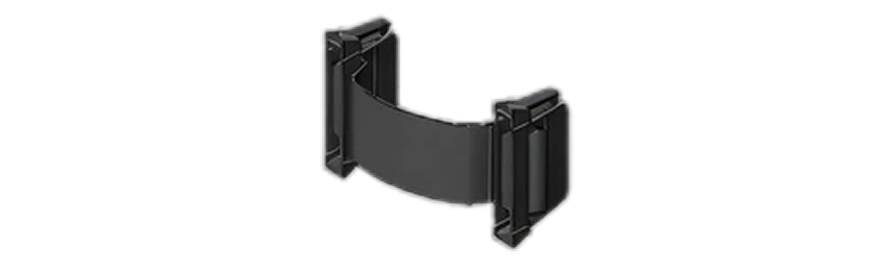

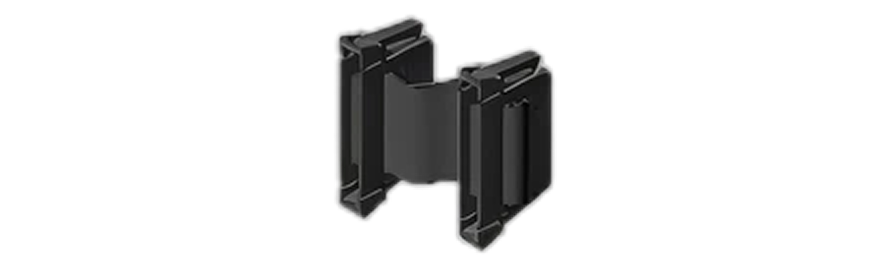

| SP-1060323 | 3842555954 | Straight Section FME* | Ribbon cable – 32mm |  |

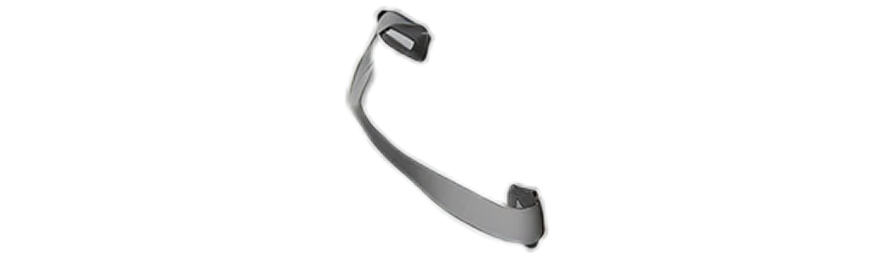

| SP-1060484 | 3842555959 | 180 Degree Section 500mm | Ribbon cable – 152mm |  |
| SP-1060483 | 3842555958 | 180 Degree Section 500mm | Ribbon cable – 241mm |  |
| SP-1060324 | 3842555955 | Straight Section FME* | Ribbon cable – 273mm |  |
| SP-125312033 | 3842567096 | 180 Degree Section 800mm | Ribbon cable – 110mm |  |
| SP-2524060 | 3842555967 | F-F Coupler | Left and right gateway ground connection point |  |
* Front Mounted Electronics
Shuttles
| Supertrak CONVEYANCE™ Part Number | ActiveMover Part Number | Description | Image |
|---|---|---|---|

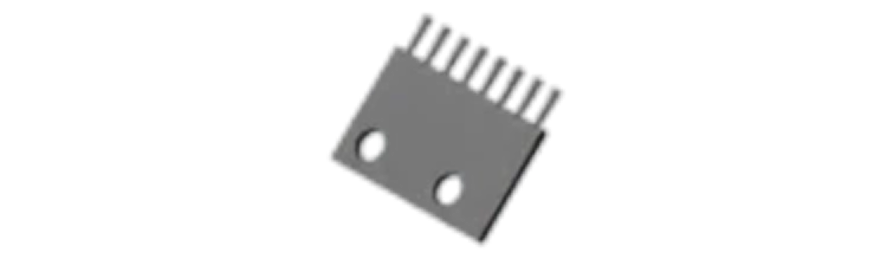

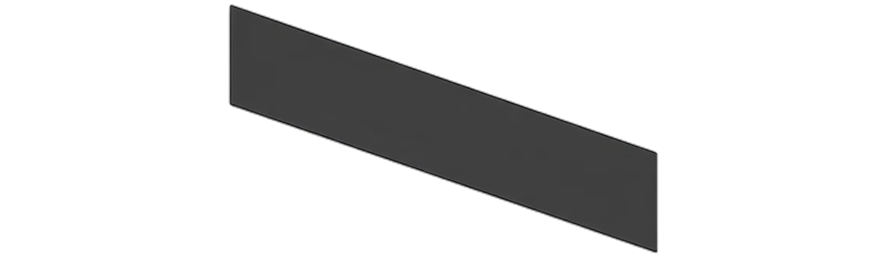

| SP-25210148-PK | 3842555985 | Anti-static brush (Pack of 10) |  |

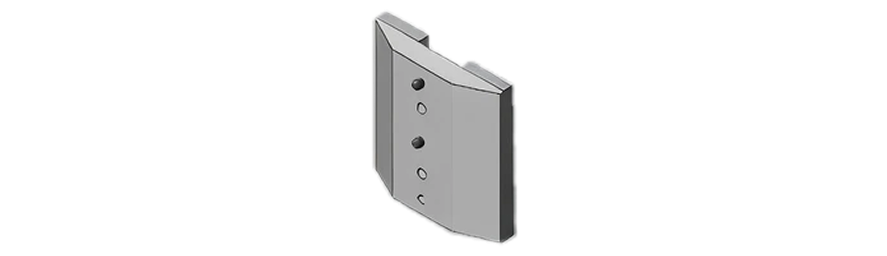

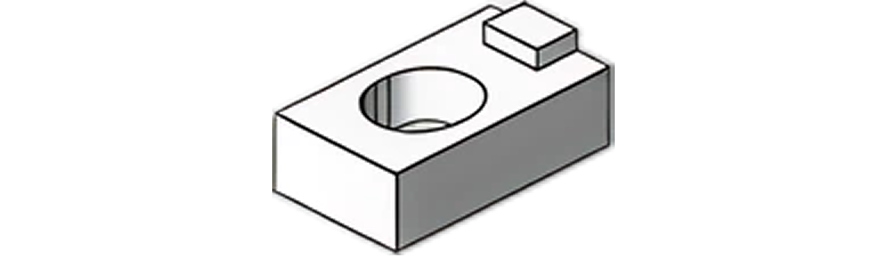

| SP-1060536 | 3842555981 | Anti-tip block |  |

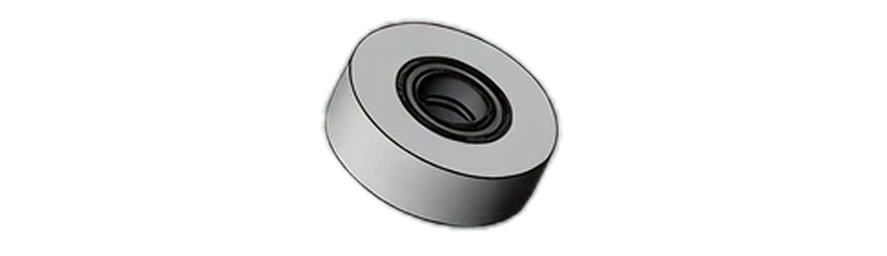

| SP-1060558 | 3842555983 | Flat wheel and bearing sub-assembly |  |

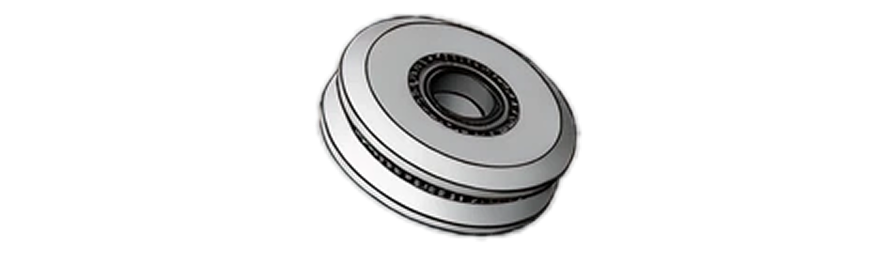

| SP-1060527 | 3842555982 | V-wheel & bearing sub-assembly |  |
| SP-1060816 | 3842555984 | Lubrication felt |  |

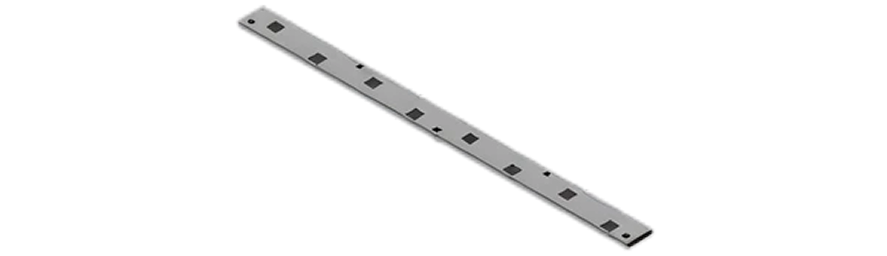

| SP-1060543 | 3842555977 | Shuttle encoder strip assembly |  |
| SP-1061122 | 3842559447 | Shuttle IR tag assembly |  |

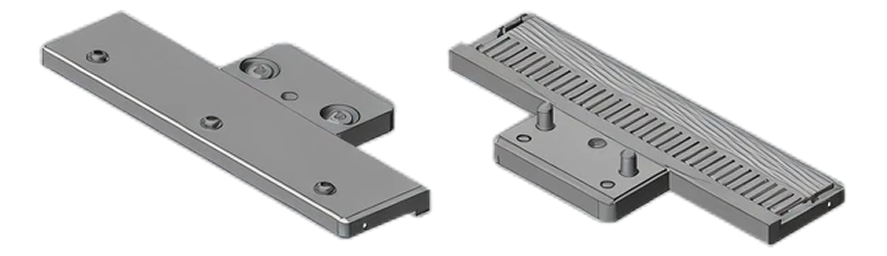

| SP-1060746 | 3842555979 | Shuttle magnet assembly – 2 magnets |  |
| SP-1060516 | 3842555980 | Shuttle magnet assembly – 3 magnets |  |
| SP-1837179 | 3842555987 | Magnetic encoder strip viewing film (Pack of 5) |  |
| SP-25172729 | 3842559439 | Shuttle removal tool |  |
Circuit boards
| Supertrak CONVEYANCE™ Part Number | ActiveMover Part Number | Description | Image |
|---|---|---|---|

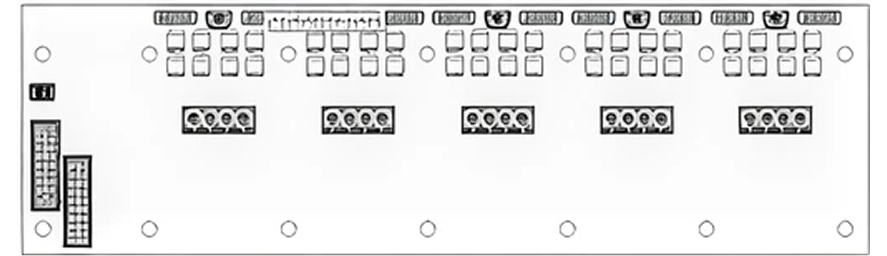

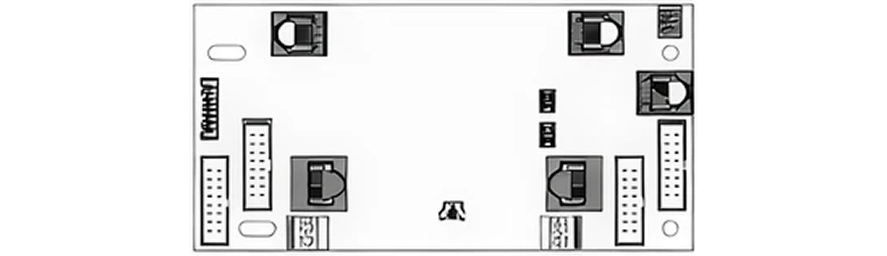

| SP-25211311 | 3842555967 | Coil driver board |  |
| SP-25211309 | 3842555968 | Gateway board |  |
Encoder
| Supertrak CONVEYANCE™ Part Number | ActiveMover Part Number | Description | Image |
|---|---|---|---|
| SP-1060304 | 3842555962 | Straight magnetic encoder assembly |  |

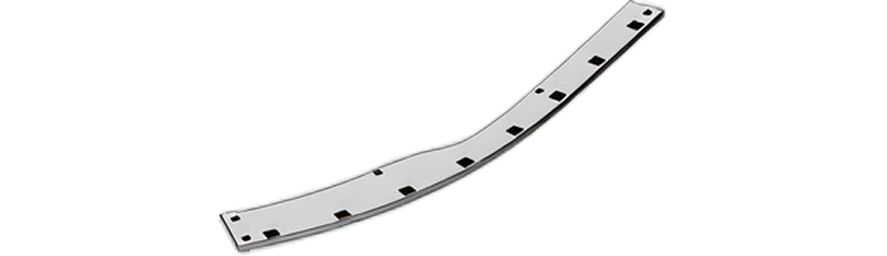

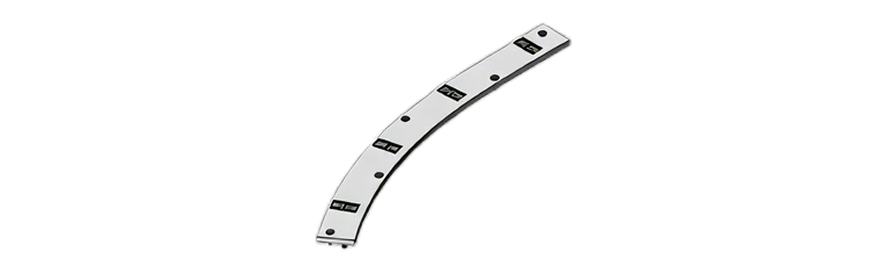

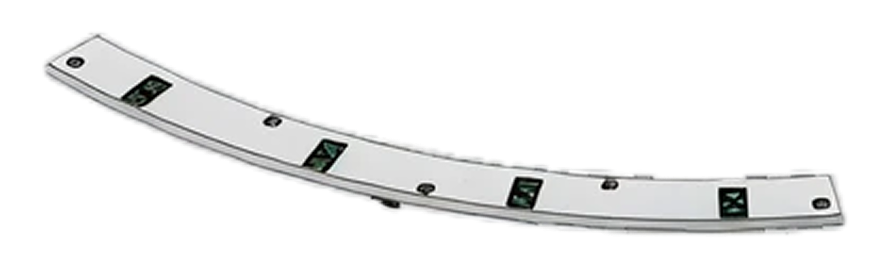

| SP-1060408 | 3842555961 | 180 deg. (500mm) section RH encoder assembly |  |
| SP-1060415 | 3842555960 | 180 deg. (500mm) section LH encoder assembly |  |

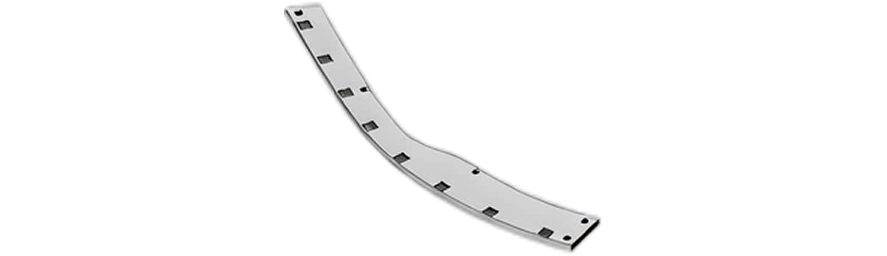

| SP-25233511 | 3842567099 | 180 deg. (800mm) section LH encoder assembly |  |
| SP-25233529 | 3842567100 | 180 deg. (800mm) section center encoder assembly |  |
| SP-25234158 | 3842567101 | 180 deg. (800mm) section RH encoder assembly |  |
| SP-125526388 | 3842567097 | 90 deg. section LH encoder assembly |  |
| SP-125526394 | 3842567098 | 90 deg. section RH encoder assembly |  |
Rail
| Supertrak CONVEYANCE™ Part Number | ActiveMover Part Number | Description | Image |
|---|---|---|---|

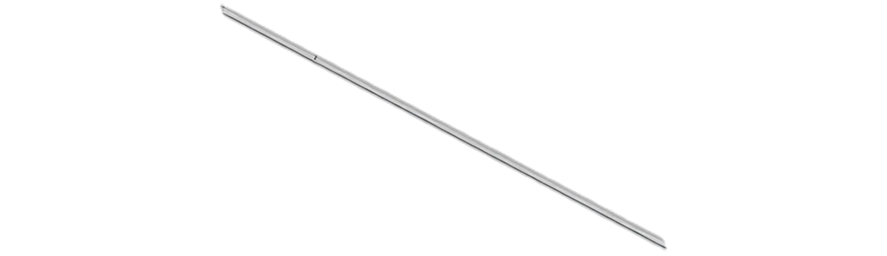

| SP-1060390 | 3842555965 | Straight upper v-rail – 999.5mm |  |

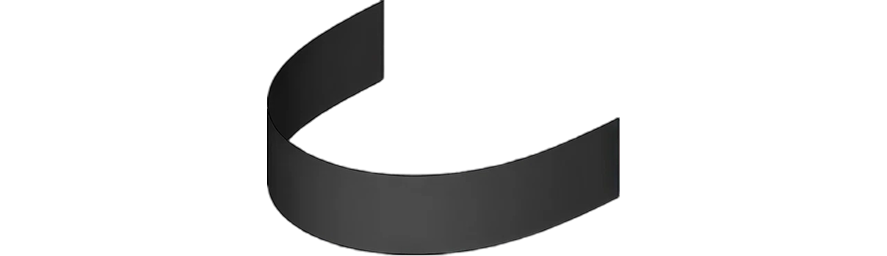

| SP-1060640 | 3842555964 | Wear Strip – 500mm 180 deg section Transition |  |

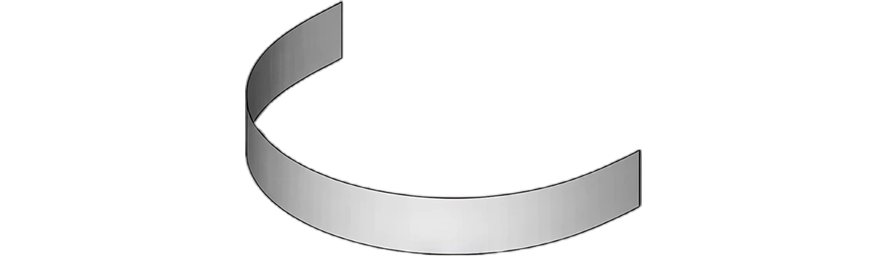

| SP-25284328 | 3842567102 | Wear Strip – 800mm 180 deg section & 90 deg section Transition |  |
| SP-125595093 | 3842567103 | Wear Strip – 90 deg section to 90 deg section |  |

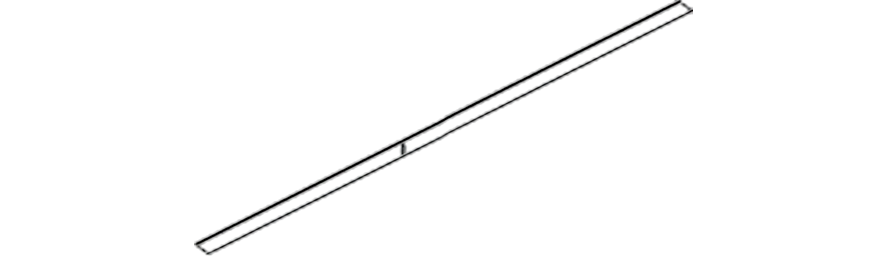

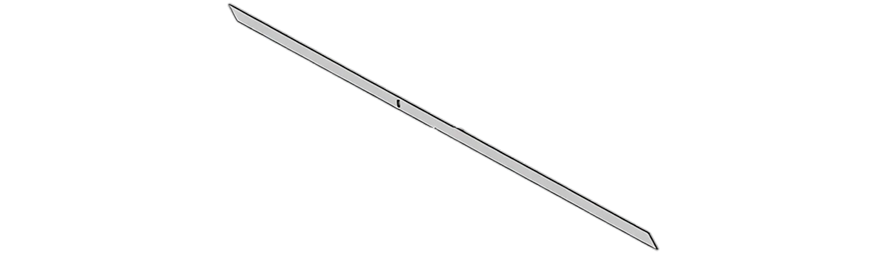

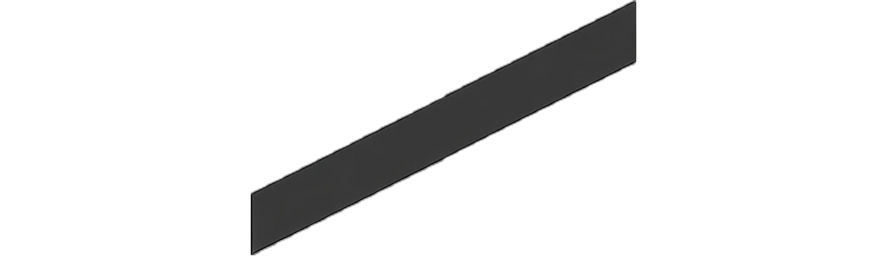

| SP-1060669 | 3842555963 | Wear Strip (1000mm) |  |
| SP-1060389 | 3842555966 | Wear strip locator |  |
Miscellaneous
| Supertrak CONVEYANCE™ Part Number | ActiveMover Part Number | Description | Image |
|---|---|---|---|
| SP-4234040-PK | 3842555986 | Coil driver fuse (Pack of 10) |  |

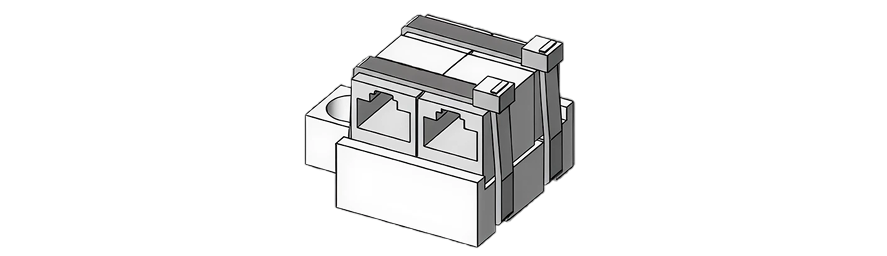

| SP-25202314 | 3842559441 | IR reader assembly |  |
| 25270337 | 3842559436 | Motor Power Supply – 1.5M DC Cable |  |
| SP-3708389-PK | 3842559552 | Plastic hole plugs; size 15 (Pack of 10) | N/A |

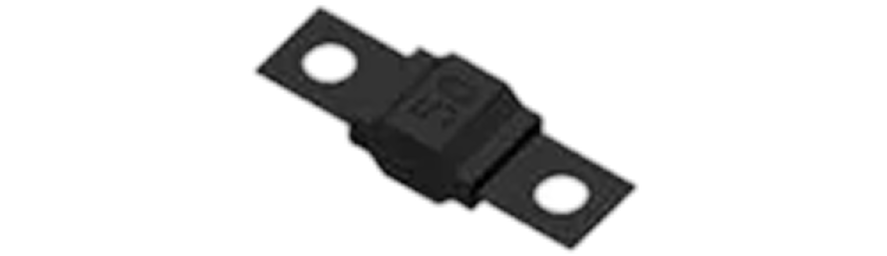

| SP-3708611-PK | 3842555970 | Power supply 50A fuse (Pack of 5) |  |
| SP-0405-0144-101-PK | 3842555969 | Power supply exhaust filter (pack of 10) | N/A |
| SP-7325131 | 3842564871 | High Performance i3 SuperTrak™ CONTROLLER | N/A |
